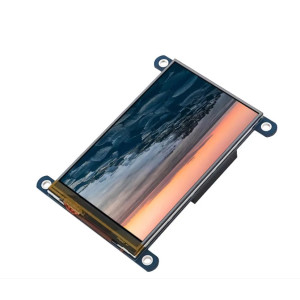

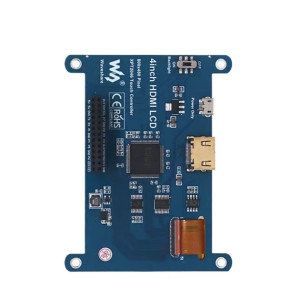

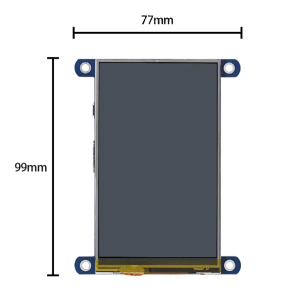

[cName] => Waveshare 4-Zoll HDMI LCD Touchscreen Monitor
[cSeo] => Waveshare-4-Zoll-HDMI-LCD-Touchscreen-Monitor
[cBeschreibung] => Waveshare 12030 4-Zoll HDMI LCD
4-Zoll-Resistiv-Touchscreen-LCD, 480×800, HDMI, IPS-Technologie, energiesparend
Merkmale:
- Hardwareauflösung: 800x480
- Resistive Touchscreen-Steuerung
- IPS-Technologie für hohe Qualität und perfekte Darstellung aus sehr weitem Blickwinkel
- Kompatibel und direkt anschließbar mit allen Versionen des Raspberry Pi (außer Pi 1 Modell B oder Pi Zero, hierfür wird ein HDMI-Kabel benötigt)
- Treiber verfügbar (kompatibel mit Raspbian/Ubuntu/Kali/Retropie)
- Kann auch als Computermonitor verwendet werden; in diesem Fall ist die Touch-Funktion nicht verfügbar und ein HDMI-Kabel wird benötigt
- HDMI-Schnittstelle für die Anzeige, keine I/Os erforderlich (für die Touch-Funktion werden jedoch I/Os benötigt)
- Hintergrundbeleuchtung kann ausgeschaltet werden, um den Stromverbrauch zu senken
Schnittstellenbeschreibung:
| PIN-Nr. | Symbol | Beschreibung |
|---|
| 1, 17 | 3.3V | Stromversorgung positiv (3,3 V Eingang) |
| 2, 4 | 5V | Stromversorgung positiv (5 V Eingang) |
| 3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 | NC | Nicht belegt (NC) |
| 6, 9, 14, 20, 25 | GND | Erdung |
| 19 | TP_SI | SPI-Dateneingang des Touchscreens |
| 21 | TP_SO | SPI-Datenausgang des Touchscreens |
| 22 | TP_IRQ | Touchscreen-Interrupt, niedriges Signal bei Berührungserkennung |
| 23 | TP_SCK | SPI-Takt des Touchscreens |
| 26 | TP_CS | Chip-Auswahl des Touchscreens, aktiv bei niedrigem Pegel |

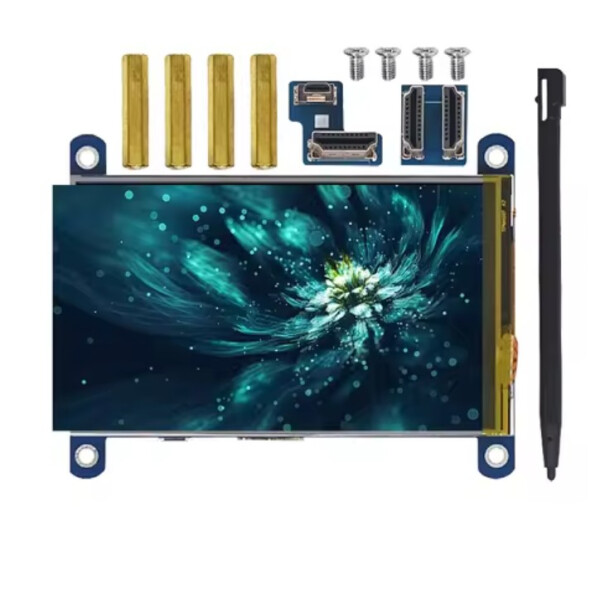

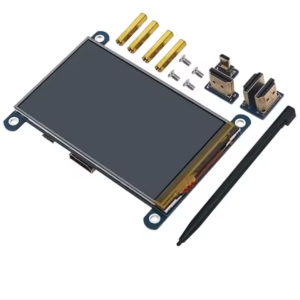

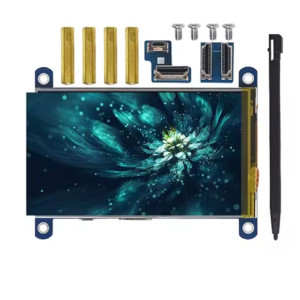

Lieferumfang:
- 4-Zoll-HDMI-LCD x1
- HDMI-Adapter x1
- HDMI-zu-Micro-HDMI-Adapter x1
- Touchpen x1
- Schraubenpaket für Raspberry Pi (4 Stück) x1
- Kurzanleitung x1
